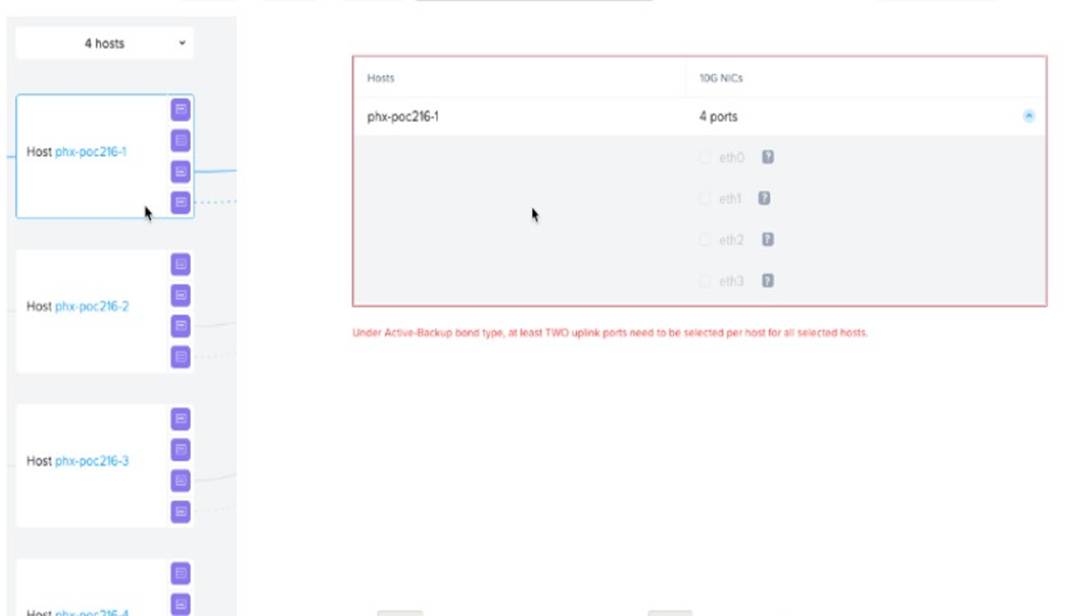

Refer to Exhibit:
An administrator is attempting to create an additional virtual switch on a newly deployed AHV cluster, using the two currently disconnected interfaces. The administrator is unable to select the disconnected interfaces when creating the virtual switch.
What is the likely cause of this issue?
Correct Answer:B
In Nutanix AHV, when creating a virtual switch and trying to add network interfaces (NICs) to it, the NICs must be connected to the network before they can be selected and assigned to the switch. If the interfaces are showing as disconnected, the system will not allow them to be added to a virtual switch because it cannot verify their operational status or the presence of a live network connection.
It is a standard requirement for the interfaces to have physical connectivity (i.e., network cables plugged in and connected to a live switch port) so that the AHV host can detect the link status as up. Once the interfaces are connected and recognized by the host, they can then be added to a virtual switch in the Nutanix AHV.
It's important to note that while the command-line interface (CLI) is indeed a powerful tool for managing network configurations on AHV hosts, and some configurations do indeed require CLI, the inability to select disconnected interfaces is not specifically a limitation that requires the use of CLI to overcome. The focus should be on ensuring that the physical connectivity is established for the interfaces in question.
This behavior is consistent with networking best practices and Nutanix's network configuration guidelines, as detailed in the Nutanix AHV Networking Guide. This guide explains the requirements and procedures for configuring virtual switches and managing
NICs in a Nutanix AHV environment.
What is the expected behavior of the VMs residing on that host when a controller VM becomes unavailable?
Correct Answer:B
According to the Nutanix Support & Insights web search result1, if the owner Controller VM becomes unavailable, the address moves to another Controller VM, ensuring that it is always available. This IP address is also used as a cluster-wide address by clients configured as part of Nutanix Files and other products. Therefore, the host will automatically redirect I/O and VMs will continue running without any interruption.
An administrator is tasked with configuring networking on an AHV cluster and needs to optimize for maximum single VM throughput.
Which bond mode should the administrator select?
Correct Answer:B
Active-Active is a bond mode that allows all uplinks in the bond to be used simultaneously for traffic transmission and reception. This bond mode provides load balancing and increased bandwidth for the AHV host and its VMs. Active-Active bond mode uses a hashing algorithm based on source MAC addresses to distribute traffic across different uplinks in the bond. Each individual VM NIC uses only a single bond member interface at a time, but multiple VM NICs are spread across different bond member interfaces. As a result, it is possible for a Nutanix AHV node with two 10 Gb interfaces to use up to 20 Gbps of network throughput, while individual VMs have a maximum throughput of 10 Gbps6.
Therefore, if an administrator needs to optimize for maximum single VM throughput, they should select Active-Active bond mode for their AHV cluster. This bond mode can be configured using Prism Element UI or manage-ovs commands on each AHV host7. No additional configuration is required on the upstream switch side, as long as the switches are interconnected physically or virtually and both uplinks trunk the same VLANs8.
Reference: Configuring Load Balancing active-backup and balance-slb modes on AHV
An administrator needs to create a new Linux image and will to do the following as part of the VM deployment:
* Set the OS hostname
* Add custom users
* Add keys
* Run custom scripts
What package needs to be installed in the Linux image to facilitate this automation?
Correct Answer:A
CloudInit is a package that contains utilities for early initialization of cloud instances. It allows you to customize virtual machines provided by a cloud vendor by modifying the generic OS configuration on boot. You can use CloudInit to set the OS hostname, add custom users, add keys, run custom scripts, and more2. CloudInit is supported by most major Linux and FreeBSD operating systems and works across different cloud platforms3. Sysprep is a tool for Windows operating systems that prepares an installation for cloning, auditing, and customer delivery4.
References: 1: Replacing Nodes in Nutanix Cluster - Nutanix Support & Insights 2: Customize a Linux VM with cloud-init in Azure - Azure Virtual
Machines 3: Cloud-Init - The standard for customising cloud instances 4: Sysprep (Generalize) a Windows installation

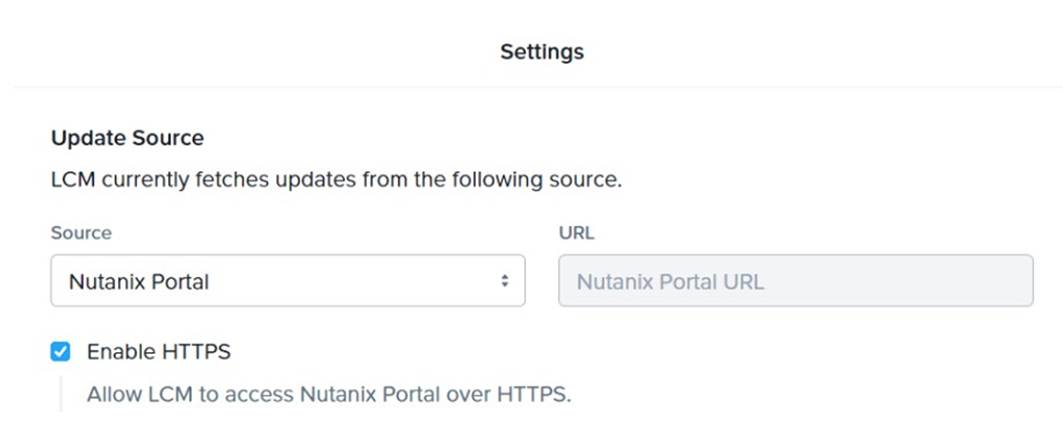

Refer to Exhibit:
The Update Source for LCM has been configured as shown in the exhibit. Inventory is failing consistently.
What is the likely cause of this issue?
Correct Answer:A
https://hyperhci.com/2019/07/22/nutanix-lcm-upgrade-process-failed-trouble- shooting/
